この記事で、Turbojetエンジン全体でdeisgn-pointとoff-designの計算を統合して行うことに成功した。しかし、終わりの方で記した予感通り、早速新しいモデルで壁に当たった。2軸、2流路のturbofanエンジンモデルを組むと動かない。原因不明、解決目途が立っていないが、ひとまず現状報告として記事上げする。


Model checkを掛けるとvariableとequationの数が一致しエラーが出ない。しかし、simulateするとエラーが出る。エラーメッセージはModelica触る人なら良く遭遇する文言、"singular"だ。残念ながら、皆お馴染みの"matrix singular"ではない。コンパイル自体通らず、"Initialization problem is structurally singular"とのメッセージで止まる。メッセージを地道に読めば手掛かりが得られる可能性が有るが、この長大メッセージをどう読み進めてゆくか。。。これが逃れられないCAEの闇、出た結果の解釈、物理以外のところでコケて進めなくなる。

下図が作成したturbofanモデル。前回記事のturbojetエンジンから少し複雑になっただけのものだ。

  • PropulsionSystem.Examples.temp.Turbofan_temp01

turbojetのモデルには無い、design-pointのバイパス比(流量配分比)を定義するcomponentが追加されている。しかし、これが原因ではないと考えられる。意図通り動作することを、別途単体で確認を取っている。

turbofan_temp01_01

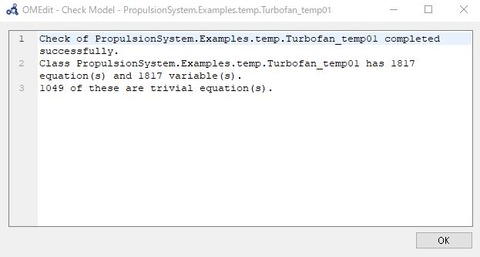

下図が、model check結果。エラーは何も現れない。

turbofan_temp01_02

こちらがdesign-pointバイパス比定義component。勿論、model checkでエラーは発生せず、simulateすると意図通り動作している。

  • PropulsionSystem.Examples.Elements.BasicElements.IdealSpliterBPRatDesignPoint_ex01

IdealSpliterBPRatDesignPoint_ex01_00

一応、エラーメッセージを下に掲載しておくので、スキルが有る方、興味が有る方は読解に挑戦して頂きたい。解決への道をご教授頂ければ幸いだ。

今回記事は以上、ここまで

------------------------------------------------------------

[1] 14:44:18 Symbolic Warning The model contains alias variables with conflicting start and/or nominal values. It is recommended to resolve the conflicts, because otherwise the system could be hard to solve. To print the conflicting alias sets and the chosen candidates please use -d=aliasConflicts.

[2] 14:44:18 Translation Warning It was not possible to determine if the initialization problem is consistent, because of not evaluable parameters/start values during compile time: SpltDesPt.ConstraintDesPt.k_auxVar1 = 0.0 (if time <= SpltDesPt.environment.timeRemoveDesConstraint then 0.0 else 1.0 = 0.0)

[3] 14:44:18 Translation Warning It was not possible to determine if the initialization problem is consistent, because of not evaluable parameters/start values during compile time: NmechDes1.ConstraintDesPt.k_auxVar1 = 0.0 (if time <= NmechDes1.environment.timeRemoveDesConstraint then 0.0 else 1.0 = 0.0)

[4] 14:44:18 Translation Warning It was not possible to determine if the initialization problem is consistent, because of not evaluable parameters/start values during compile time: NmechDes.ConstraintDesPt.k_auxVar1 = 0.0 (if time <= NmechDes.environment.timeRemoveDesConstraint then 0.0 else 1.0 = 0.0)

[5] 14:44:18 Translation Warning It was not possible to determine if the initialization problem is consistent, because of not evaluable parameters/start values during compile time: MassFlowDes.ConstraintDesPt.k_auxVar1 = 0.0 (if time <= MassFlowDes.environment.timeRemoveDesConstraint then 0.0 else 1.0 = 0.0)

[6] 14:44:18 Translation Notification The given system is mixed-determined. [index = 2]

[7] 14:44:18 Symbolic Error Initialization problem is structurally singular, error found sorting equations 456: SpltDesPt.ConstraintDesPt.k_u_variable = if time <= SpltDesPt.environment.timeRemoveDesConstraint then 1.0 else 0.0; 203: SpltDesPt.ConstraintDesPt.auxVar1 = 0.0; 429: -Cmp.port_1.m_flow = (-MassFlowDes.massFlowRate1.m_flow) / (1.0 + SpltDesPt.Splt.u_BPR); 455: SpltDesPt.const.k = SpltDesPt.ConstraintDesPt.k_u_variable * SpltDesPt.ConstraintDesPt.u_variable + SpltDesPt.ConstraintDesPt.auxVar1; 428: -Cmp1.port_1.m_flow = (-MassFlowDes.massFlowRate1.m_flow) * SpltDesPt.Splt.u_BPR / (1.0 + SpltDesPt.Splt.u_BPR); 427: SpltDesPt.ConstraintDesPt.u_variable = Cmp1.port_1.m_flow / SpltDesPt.division1.u2; 10: Cmp.NmechDes = Cmp.Nmech; 42: Cmp.Nc_1_des = Cmp.NmechDes / sqrt(Cmp.fluid_1.T / environment.Tstd); 759: Cmp.ScalerDesCmp.y_s_NcDes = Cmp.Nc_1_des / Cmp.NcTblDes_paramInput; 723: Cmp.Nmech = 9.549296585513721 * Cmp.omega; 745: Cmp.division_NcTbl.u2 = homotopy(smooth(0, if Cmp.ScalerDesCmp.y_s_NcDes > Cmp.limiter.uMax then Cmp.limiter.uMax else if Cmp.ScalerDesCmp.y_s_NcDes < Cmp.limiter.uMin then Cmp.limiter.uMin else Cmp.ScalerDesCmp.y_s_NcDes), Cmp.ScalerDesCmp.y_s_NcDes); 734: Cmp.Nc_1 = Cmp.Nmech / sqrt(Cmp.fluid_1.T / environment.Tstd); 927: Inlt.fluid_2.Xi[3] = smooth(0, Flt2Fluid.X_fluid_paramInput[3]); 430: SpltDesPt.Splt.fluid_3.Xi[3] = smooth(0, if MassFlowDes.massFlowRate1.m_flow > 0.0 then Inlt.fluid_2.Xi[3] else SpltDesPt.Splt.fluid_3.Xi[3]); 738: Cmp.fluid_1.Xi[3] = smooth(0, SpltDesPt.Splt.fluid_3.Xi[3]); 926: Inlt.fluid_2.Xi[2] = smooth(0, Flt2Fluid.X_fluid_paramInput[2]); 431: SpltDesPt.Splt.fluid_3.Xi[2] = smooth(0, if MassFlowDes.massFlowRate1.m_flow > 0.0 then Inlt.fluid_2.Xi[2] else SpltDesPt.Splt.fluid_3.Xi[2]); 739: Cmp.fluid_1.Xi[2] = smooth(0, SpltDesPt.Splt.fluid_3.Xi[2]); 925: Inlt.fluid_2.Xi[1] = smooth(0, Flt2Fluid.X_fluid_paramInput[1]); 432: SpltDesPt.Splt.fluid_3.Xi[1] = smooth(0, if MassFlowDes.massFlowRate1.m_flow > 0.0 then Inlt.fluid_2.Xi[1] else SpltDesPt.Splt.fluid_3.Xi[1]); 740: Cmp.fluid_1.Xi[1] = smooth(0, SpltDesPt.Splt.fluid_3.Xi[1]); 581: MassFlowDes.ConstraintDesPt.k_u_variable = if time <= MassFlowDes.environment.timeRemoveDesConstraint then 1.0 else 0.0; 107: MassFlowDes.ConstraintDesPt.auxVar1 = 0.0; 897: Flt2Fluid.AltMN2pTh.y_hTot = PropulsionSystem.Subelements.AltMN2pTh00$Flt2Fluid$AltMN2pTh.Medium.h_TX(Flt2Fluid.AltMN2pTh.y_Ttot, {Flt2Fluid.X_fluid_paramInput[1], Flt2Fluid.X_fluid_paramInput[2], Flt2Fluid.X_fluid_paramInput[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 867: Flt2Fluid.limiter4.y = homotopy(smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Ttot > Flt2Fluid.limiter4.uMax) then Flt2Fluid.limiter4.uMax else if noEvent(Flt2Fluid.AltMN2pTh.y_Ttot < Flt2Fluid.limiter4.uMin) then Flt2Fluid.limiter4.uMin else Flt2Fluid.AltMN2pTh.y_Ttot), Flt2Fluid.AltMN2pTh.y_Ttot); 873: Flt2Fluid.sourceFluid2Inlet.ports[1].h_outflow = Modelica.Fluid.Sources.Boundary_pT$Flt2Fluid$sourceFluid2Inlet.Medium.h_TX(Flt2Fluid.limiter4.y, {Flt2Fluid.X_fluid_paramInput[1], Flt2Fluid.X_fluid_paramInput[2], Flt2Fluid.X_fluid_paramInput[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 580: MassFlowDes.const.k = MassFlowDes.ConstraintDesPt.k_u_variable * MassFlowDes.massFlowRate1.m_flow + MassFlowDes.ConstraintDesPt.auxVar1; 908: Inlt.fluid_1.h = smooth(0, Flt2Fluid.sourceFluid2Inlet.ports[1].h_outflow); 903: MassFlowDes.massFlowRate1.m_flow * (Inlt.fluid_1.h - Inlt.fluid_2.h) = 0.0; 907: Inlt.fluid_2.h = smooth(0, MassFlowDes.port_2.h_outflow); 433: SpltDesPt.Splt.fluid_3.h = smooth(0, if MassFlowDes.massFlowRate1.m_flow > 0.0 then MassFlowDes.port_2.h_outflow else SpltDesPt.Splt.fluid_3.h); 933: boundary.ports[1].h_outflow = PropulsionSystem.Sources.MassFlowSource_T$boundary.Medium.h_TX(400.0, {1.0, 0.0, 0.0}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 814: Comb.HeatInjector.fluid_2.h = PropulsionSystem.Elements.BasicElements.HeatInjector00$Comb$HeatInjector.Medium.h_TX(Comb.HeatInjector.fluid_2.T, {Comb.HeatInjector.fluid_1.Xi[1], Comb.HeatInjector.fluid_1.Xi[2], Comb.HeatInjector.fluid_1.Xi[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 866: algorithm Comb.Combustion.m_flow_fuel := VarBySolver.y_independent; Comb.Combustion.LHV_fuel := Comb.LHV_fuel_paramInput; Comb.Combustion.effComb := Comb.effComb_paramInput; if Comb.Combustion.m_flow_fuel > 0.0 then Comb.Combustion.Qcomb := Comb.Combustion.m_flow_fuel * Comb.Combustion.LHV_fuel * Comb.Combustion.effComb; else Comb.Combustion.Qcomb := 0.0; end if; Comb.Combustion.y_m_flow_fuel := Comb.Combustion.m_flow_fuel; Comb.Combustion.y_Qcomb := Comb.Combustion.Qcomb; ; 797: -Comb.HeatInjector.HeatPort_1.Q_flow = (-Comb.Combustion.y_Qcomb) * (1.0 + Comb.prescribedHeatFlow1.alpha * (Comb.HeatInjector.fluid_2.T - Comb.prescribedHeatFlow1.T_ref)); 806: Comb.HeatInjector.fluid_2.h = smooth(0, Comb.port_2.h_outflow); 800: Comb.HeatInjector.HeatPort_1.Q_flow + Trb.port_1.m_flow * (Comb.HeatInjector.fluid_1.h - Comb.HeatInjector.fluid_2.h) = 0.0; 810: Comb.HeatInjector.fluid_1.h = smooth(0, if Trb.port_1.m_flow > 0.0 then Comb.Mixer.port_3.h_outflow else Comb.HeatInjector.fluid_1.h); 424: 99999.99999999999 * Trb.fluid_1.p_bar = Cmp.fluid_2.p; 413: Cmp.port_2.m_flow = -Cmp.port_1.m_flow; 726: Cmp.pwr = (-Cmp.port_1.m_flow) * Cmp.fluid_1.h - Cmp.port_2.m_flow * Cmp.fluid_2.h; 924: Cmp.flange_1.tau = 0.0; 724: Cmp.omega * Cmp.trq = Cmp.pwr; 727: Cmp.trq = Cmp.flange_1.tau + Cmp.flange_2.tau; 923: Trb.flange_2.tau = 0.0; 420: Trb.flange_1.tau = -Cmp.flange_2.tau; 672: Trb.trq = Trb.flange_1.tau + Trb.flange_2.tau; 423: Trb.port_1.m_flow = -Trb.port_2.m_flow; 669: Trb.omega * Trb.trq = Trb.pwr; 671: Trb.pwr = (-Trb.port_1.m_flow) * Trb.fluid_1.h - Trb.port_2.m_flow * Trb.fluid_2.h; 690: Trb.TrbTbl_WcEff_NcPR.u_PRtbl = Trb.add_PRtbl.k1 * Trb.add_PRtbl.u1 + Trb.add_PRtbl.k2 * Trb.const.k; 691: Trb.division_PRtbl.u1 = Trb.PR - Trb.const1.k; 693: Trb.add_PRtbl.u1 = Trb.division_PRtbl.u1 / Trb.division_PRtbl.u2; 935: Trb.ScalerDesTrb.division3.u2 = Trb.PRtblDes_paramInput - Trb.ScalerDesTrb.const1.k; 689: Trb.division_PRtbl.u2 = homotopy(smooth(0, if Trb.ScalerDesTrb.y_s_PRdes > Trb.limiter.uMax then Trb.limiter.uMax else if Trb.ScalerDesTrb.y_s_PRdes < Trb.limiter.uMin then Trb.limiter.uMin else Trb.ScalerDesTrb.y_s_PRdes), Trb.ScalerDesTrb.y_s_PRdes); 700: Trb.ScalerDesTrb.y_s_PRdes = Trb.ScalerDesTrb.division3.u1 / Trb.ScalerDesTrb.division3.u2; 698: Trb.ScalerDesTrb.division3.u1 = Trb.PRdes - Trb.ScalerDesTrb.const.k; 55: Trb.PRdes = Trb.PR; 677: Trb.PR = Trb.fluid_1.p / Trb.fluid_2.p; 676: Trb.h_2is = PropulsionSystem.Elements.BasicElements.TrbCharTable01$Trb.Medium.isentropicEnthalpyApproximation(Trb.fluid_2.p, PropulsionSystem.Elements.BasicElements.TrbCharTable01$Trb.Medium.ThermodynamicState$Trb$fluid_1$state(Cmp.fluid_2.p, Trb.fluid_1.T, {Trb1.fluid_2.Xi[1], Trb1.fluid_2.Xi[2], Trb1.fluid_2.Xi[3]})); 673: Trb.dht = Trb.fluid_1.h - Trb.fluid_2.h; 675: Trb.dht_is = Trb.fluid_1.h - Trb.h_2is; 674: Trb.eff = Trb.dht / Trb.dht_is; 703: Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.y_eff = Modelica.Blocks.Tables.CombiTable2D$Trb$ScalerDesTrb$TrbTbl_WcEff_NcPR$combiTable2D_eff.getTableValue(Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.combiTable2D_eff.tableID, Trb.NcTblDes_paramInput, Trb.PRtblDes_paramInput, Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.combiTable2D_eff.tableOnFileRead); 686: 0.0 = if noEvent(time <= environment.timeRemoveDesConstraint) then Trb.eff - Trb.effDes_paramInput else Trb.eff - Trb.SclTrb.y_effScld; 699: Trb.ScalerDesTrb.y_s_effDes = Trb.effDes_paramInput / Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.y_eff; 694: Trb.SclTrb.y_effScld = Trb.ScalerDesTrb.y_s_effDes * Trb.SclTrb.u_eff; 54: Trb.NmechDes = Trb.Nmech; 70: Trb.Nc_1_des = Trb.NmechDes / sqrt(Trb.fluid_1_des.T / environment.Tstd); 702: Trb.ScalerDesTrb.y_s_NcDes = Trb.Nc_1_des / Trb.NcTblDes_paramInput; 578: NmechDes.ConstraintDesPt.k_u_variable = if time <= NmechDes.environment.timeRemoveDesConstraint then 1.0 else 0.0; 109: NmechDes.ConstraintDesPt.auxVar1 = 0.0; 577: NmechDes.const.k = NmechDes.ConstraintDesPt.k_u_variable * NmechDes.ConstraintDesPt.u_variable + NmechDes.ConstraintDesPt.auxVar1; 579: NmechDes.ConstraintDesPt.u_variable = 9.549296585513721 * Cmp.omega; 417: Trb.omega = Cmp.omega; 668: Trb.Nmech = 9.549296585513721 * Trb.omega; 688: Trb.division_NcTbl.u2 = homotopy(smooth(0, if Trb.ScalerDesTrb.y_s_NcDes > Trb.limiter1.uMax then Trb.limiter1.uMax else if Trb.ScalerDesTrb.y_s_NcDes < Trb.limiter1.uMin then Trb.limiter1.uMin else Trb.ScalerDesTrb.y_s_NcDes), Trb.ScalerDesTrb.y_s_NcDes); 678: Trb.Nc_1 = Trb.Nmech / sqrt(Trb.fluid_1.T / environment.Tstd); 696: Trb.SclTrb.u_eff = Modelica.Blocks.Tables.CombiTable2D$Trb$TrbTbl_WcEff_NcPR$combiTable2D_eff.getTableValue(Trb.TrbTbl_WcEff_NcPR.combiTable2D_eff.tableID, Trb.TrbTbl_WcEff_NcPR.u_NcTbl, Trb.TrbTbl_WcEff_NcPR.u_PRtbl, Trb.TrbTbl_WcEff_NcPR.combiTable2D_eff.tableOnFileRead); 692: Trb.TrbTbl_WcEff_NcPR.u_NcTbl = Trb.Nc_1 / Trb.division_NcTbl.u2; 53: Trb.fluid_1_des.T = Trb.fluid_1.T; 52: Trb.fluid_1_des.p = Trb.fluid_1.p; 704: Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.y_Wc = Modelica.Blocks.Tables.CombiTable2D$Trb$ScalerDesTrb$TrbTbl_WcEff_NcPR$combiTable2D_Wc.getTableValue(Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.combiTable2D_Wc.tableID, Trb.NcTblDes_paramInput, Trb.PRtblDes_paramInput, Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.combiTable2D_Wc.tableOnFileRead); 69: Trb.Wc_1_des = Trb.fluid_1_des.m_flow * sqrt(Trb.fluid_1_des.T / environment.Tstd) * environment.pStd / Trb.fluid_1_des.p; 697: Trb.SclTrb.u_Wc = Modelica.Blocks.Tables.CombiTable2D$Trb$TrbTbl_WcEff_NcPR$combiTable2D_Wc.getTableValue(Trb.TrbTbl_WcEff_NcPR.combiTable2D_Wc.tableID, Trb.TrbTbl_WcEff_NcPR.u_NcTbl, Trb.TrbTbl_WcEff_NcPR.u_PRtbl, Trb.TrbTbl_WcEff_NcPR.combiTable2D_Wc.tableOnFileRead); 701: Trb.ScalerDesTrb.y_s_WcDes = Trb.Wc_1_des / Trb.ScalerDesTrb.TrbTbl_WcEff_NcPR.y_Wc; 695: Trb.SclTrb.y_WcScld = Trb.ScalerDesTrb.y_s_WcDes * Trb.SclTrb.u_Wc; 51: Trb.fluid_1_des.m_flow = Trb.port_1.m_flow; 829: 0.0 = if VarBySolver.y_independent > 0.0 then Cmp.port_1.m_flow + VarBySolver.y_independent - Trb.port_1.m_flow else Cmp.port_1.m_flow - Trb.port_1.m_flow; 717: Trb.fluid_1.p_bar = 1e-005 * Trb.fluid_1.p; 687: 0.0 = if noEvent(time <= environment.timeRemoveDesConstraint) then Trb.fluid_1_des.m_flow - Trb.port_1.m_flow else Trb.Wc_1 - Trb.SclTrb.y_WcScld; 827: 0.0 = if VarBySolver.y_independent > 0.0 then Comb.Mixer.fluid_3.Xi[3] * (Cmp.port_1.m_flow + VarBySolver.y_independent) - Cmp.fluid_2.Xi[3] * Cmp.port_1.m_flow else Comb.Mixer.fluid_3.Xi[3] - Cmp.fluid_2.Xi[3]; 830: Comb.Mixer.fluid_3.Xi[3] = smooth(0, Comb.Mixer.port_3.Xi_outflow[3]); 807: Comb.HeatInjector.fluid_1.Xi[3] = smooth(0, if Trb.port_1.m_flow > 0.0 then Comb.Mixer.port_3.Xi_outflow[3] else Comb.HeatInjector.fluid_1.Xi[3]); 826: 0.0 = if VarBySolver.y_independent > 0.0 then Comb.Mixer.fluid_3.Xi[2] * (Cmp.port_1.m_flow + VarBySolver.y_independent) - Cmp.fluid_2.Xi[2] * Cmp.port_1.m_flow else Comb.Mixer.fluid_3.Xi[2] - Cmp.fluid_2.Xi[2]; 831: Comb.Mixer.fluid_3.Xi[2] = smooth(0, Comb.Mixer.port_3.Xi_outflow[2]); 808: Comb.HeatInjector.fluid_1.Xi[2] = smooth(0, if Trb.port_1.m_flow > 0.0 then Comb.Mixer.port_3.Xi_outflow[2] else Comb.HeatInjector.fluid_1.Xi[2]); 803: Comb.HeatInjector.fluid_1.Xi[3] = smooth(0, Comb.port_2.Xi_outflow[3]); 804: Comb.HeatInjector.fluid_1.Xi[2] = smooth(0, Comb.port_2.Xi_outflow[2]); 920: Constraint.u_variable = ramp_TIT.offset + (if time < ramp_TIT.startTime then 0.0 else if time < ramp_TIT.startTime + ramp_TIT.duration then (time - ramp_TIT.startTime) * ramp_TIT.height / ramp_TIT.duration else ramp_TIT.height); 919: Constraint.u_variable = Modelica.Fluid.Sensors.Temperature$temperature.Medium.T_hX(Comb.port_2.h_outflow, {Comb.port_2.Xi_outflow[1], Comb.port_2.Xi_outflow[2], Comb.port_2.Xi_outflow[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 779: Trb1.fluid_2.Xi[3] = smooth(0, Comb.port_2.Xi_outflow[3]); 780: Trb1.fluid_2.Xi[2] = smooth(0, Comb.port_2.Xi_outflow[2]); 679: Trb.Wc_1 = Trb.port_1.m_flow * sqrt(Trb.fluid_1.T / environment.Tstd) * environment.pStd / Trb.fluid_1.p; 782: Trb.fluid_1.h = smooth(0, Comb.port_2.h_outflow); 715: Trb.fluid_1.h = PropulsionSystem.Elements.BasicElements.TrbCharTable01$Trb.Medium.h_TX(Trb.fluid_1.T, {Trb1.fluid_2.Xi[1], Trb1.fluid_2.Xi[2], Trb1.fluid_2.Xi[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 781: Trb1.fluid_2.Xi[1] = smooth(0, Comb.port_2.Xi_outflow[1]); 805: Comb.HeatInjector.fluid_1.Xi[1] = smooth(0, Comb.port_2.Xi_outflow[1]); 809: Comb.HeatInjector.fluid_1.Xi[1] = smooth(0, if Trb.port_1.m_flow > 0.0 then Comb.Mixer.port_3.Xi_outflow[1] else Comb.HeatInjector.fluid_1.Xi[1]); 832: Comb.Mixer.fluid_3.Xi[1] = smooth(0, Comb.Mixer.port_3.Xi_outflow[1]); 204: Comb.Mixer.fluid_2.h = smooth(0, boundary.ports[1].h_outflow); 833: Comb.Mixer.fluid_3.h = smooth(0, Comb.Mixer.port_3.h_outflow); 825: 0.0 = if VarBySolver.y_independent > 0.0 then Comb.Mixer.fluid_3.Xi[1] * (Cmp.port_1.m_flow + VarBySolver.y_independent) - (Cmp.fluid_2.Xi[1] * Cmp.port_1.m_flow + VarBySolver.y_independent) else Comb.Mixer.fluid_3.Xi[1] - Cmp.fluid_2.Xi[1]; 828: 0.0 = if VarBySolver.y_independent > 0.0 then Comb.Mixer.fluid_3.h * (Cmp.port_1.m_flow + VarBySolver.y_independent) - (Cmp.port_1.m_flow * Cmp.fluid_2.h + VarBySolver.y_independent * Comb.Mixer.fluid_2.h) else Comb.Mixer.fluid_3.h - Cmp.fluid_2.h; 760: Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_eff = Modelica.Blocks.Tables.CombiTable2D$Cmp$ScalerDesCmp$CmpTbl_WcPReff_NcRline_Des$combiTable2D_eff.getTableValue(Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_eff.tableID, Cmp.NcTblDes_paramInput, Cmp.RlineTblDes_paramInput, Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_eff.tableOnFileRead); 747: Cmp.CmpTbl_WcPReff_NcRline.y_eff = Modelica.Blocks.Tables.CombiTable2D$Cmp$CmpTbl_WcPReff_NcRline$combiTable2D_eff.getTableValue(Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_eff.tableID, Cmp.CmpTbl_WcPReff_NcRline.u_NcTbl, Cmp.Rline, Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_eff.tableOnFileRead); 756: Cmp.ScalerDesCmp.y_s_effDes = Cmp.effDes_paramInput / Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_eff; 752: Cmp.SclCmp.y_effScld = Cmp.ScalerDesCmp.y_s_effDes * Cmp.CmpTbl_WcPReff_NcRline.y_eff; 730: Cmp.dht = Cmp.fluid_2.h - Cmp.fluid_1.h; 742: Cmp.eff = if noEvent(time <= environment.timeRemoveDesConstraint) then Cmp.effDes_paramInput else Cmp.SclCmp.y_effScld; 741: Cmp.fluid_1.h = smooth(0, SpltDesPt.Splt.fluid_3.h); 729: Cmp.eff = if 0.0 < Cmp.dht then Cmp.dht_is / Cmp.dht else 0.0; 411: Cmp.fluid_1.Xi[3] = Cmp.fluid_2.Xi[3]; 410: Cmp.fluid_1.Xi[2] = Cmp.fluid_2.Xi[2]; 409: Cmp.fluid_1.Xi[1] = Cmp.fluid_2.Xi[1]; 731: Cmp.dht_is = Cmp.h_2is - Cmp.fluid_1.h; 732: Cmp.h_2is = PropulsionSystem.Elements.BasicElements.CmpCharTable01$Cmp.Medium.isentropicEnthalpyApproximation(Cmp.fluid_2.p, PropulsionSystem.Elements.BasicElements.CmpCharTable01$Cmp.Medium.ThermodynamicState$Cmp$fluid_1$state(Cmp.fluid_1.p, Cmp.fluid_1.T, {Cmp.fluid_2.Xi[1], Cmp.fluid_2.Xi[2], Cmp.fluid_2.Xi[3]})); 733: Cmp.PR = Cmp.fluid_2.p / Cmp.fluid_1.p; 743: Cmp.PR = if noEvent(time <= environment.timeRemoveDesConstraint) then Cmp.PRdes_paramInput else Cmp.SclCmp.y_PRscld; 761: Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_PR = Modelica.Blocks.Tables.CombiTable2D$Cmp$ScalerDesCmp$CmpTbl_WcPReff_NcRline_Des$combiTable2D_PR.getTableValue(Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_PR.tableID, Cmp.NcTblDes_paramInput, Cmp.RlineTblDes_paramInput, Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_PR.tableOnFileRead); 934: Cmp.ScalerDesCmp.division3.u1 = Cmp.PRdes_paramInput - Cmp.ScalerDesCmp.const.k; 755: Cmp.ScalerDesCmp.division3.u2 = Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_PR - Cmp.ScalerDesCmp.const1.k; 750: Cmp.SclCmp.y_PRscld = Cmp.SclCmp.add1.k1 * Cmp.SclCmp.add1.u1 + Cmp.SclCmp.add1.k2 * Cmp.SclCmp.const1.k; 757: Cmp.ScalerDesCmp.y_s_PRdes = Cmp.ScalerDesCmp.division3.u1 / Cmp.ScalerDesCmp.division3.u2; 751: Cmp.SclCmp.add1.u1 = Cmp.ScalerDesCmp.y_s_PRdes * Cmp.SclCmp.feedback1.y; 753: Cmp.SclCmp.feedback1.y = Cmp.CmpTbl_WcPReff_NcRline.y_PR - Cmp.SclCmp.const.k; 746: Cmp.CmpTbl_WcPReff_NcRline.u_NcTbl = Cmp.Nc_1 / Cmp.division_NcTbl.u2; 748: Cmp.CmpTbl_WcPReff_NcRline.y_PR = Modelica.Blocks.Tables.CombiTable2D$Cmp$CmpTbl_WcPReff_NcRline$combiTable2D_PR.getTableValue(Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_PR.tableID, Cmp.CmpTbl_WcPReff_NcRline.u_NcTbl, Cmp.Rline, Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_PR.tableOnFileRead); 762: Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_Wc = Modelica.Blocks.Tables.CombiTable2D$Cmp$ScalerDesCmp$CmpTbl_WcPReff_NcRline_Des$combiTable2D_Wc.getTableValue(Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_Wc.tableID, Cmp.NcTblDes_paramInput, Cmp.RlineTblDes_paramInput, Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_Wc.tableOnFileRead); 749: Cmp.CmpTbl_WcPReff_NcRline.y_Wc = Modelica.Blocks.Tables.CombiTable2D$Cmp$CmpTbl_WcPReff_NcRline$combiTable2D_Wc.getTableValue(Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_Wc.tableID, Cmp.CmpTbl_WcPReff_NcRline.u_NcTbl, Cmp.Rline, Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_Wc.tableOnFileRead); 758: Cmp.ScalerDesCmp.y_s_WcDes = Cmp.Wc_1_des / Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_Wc; 754: Cmp.SclCmp.y_WcScld = Cmp.ScalerDesCmp.y_s_WcDes * Cmp.CmpTbl_WcPReff_NcRline.y_Wc; 735: Cmp.Wc_1 = Cmp.port_1.m_flow * sqrt(Cmp.fluid_1.T / environment.Tstd) * environment.pStd / Cmp.fluid_1.p; 426: SpltDesPt.division1.u2 = homotopy(smooth(0, if Cmp.port_1.m_flow > SpltDesPt.limiter1.uMax then SpltDesPt.limiter1.uMax else if Cmp.port_1.m_flow < SpltDesPt.limiter1.uMin then SpltDesPt.limiter1.uMin else Cmp.port_1.m_flow), Cmp.port_1.m_flow); 773: Cmp.fluid_1.h = PropulsionSystem.Elements.BasicElements.CmpCharTable01$Cmp.Medium.h_TX(Cmp.fluid_1.T, {Cmp.fluid_2.Xi[1], Cmp.fluid_2.Xi[2], Cmp.fluid_2.Xi[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 744: Cmp.Wc_1 = if noEvent(time <= environment.timeRemoveDesConstraint) then Cmp.Wc_1_des else Cmp.SclCmp.y_WcScld; 41: Cmp.Wc_1_des = Cmp.port_1.m_flow * sqrt(Cmp.fluid_1.T / environment.Tstd) * environment.pStd / Cmp.fluid_1.p; 904: Cmp.fluid_1.p = Inlt.effRamDes_paramInput * Flt2Fluid.sourceFluid2Inlet.p_in; 868: Flt2Fluid.sourceFluid2Inlet.p_in = homotopy(smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_pTot > Flt2Fluid.limiter3.uMax) then Flt2Fluid.limiter3.uMax else if noEvent(Flt2Fluid.AltMN2pTh.y_pTot < Flt2Fluid.limiter3.uMin) then Flt2Fluid.limiter3.uMin else Flt2Fluid.AltMN2pTh.y_pTot), Flt2Fluid.AltMN2pTh.y_pTot); 884: Flt2Fluid.y_V_inf = Flt2Fluid.MN_paramInput * sqrt(max(0.0, (518.2791167938085 * Flt2Fluid.X_fluid_paramInput[1] + 296.8033869505308 * Flt2Fluid.X_fluid_paramInput[2] + 259.8369938872708 * Flt2Fluid.X_fluid_paramInput[3]) * Flt2Fluid.AltMN2pTh.y_Tamb * (smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Tamb < 1000) then 518.2791167938085 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (-176685.0998 + Flt2Fluid.AltMN2pTh.y_Tamb * (2786.18102 + Flt2Fluid.AltMN2pTh.y_Tamb * (-12.0257785 + Flt2Fluid.AltMN2pTh.y_Tamb * (0.0391761929 + Flt2Fluid.AltMN2pTh.y_Tamb * (-3.61905443e-005 + Flt2Fluid.AltMN2pTh.y_Tamb * (2.026853043e-008 + (-4.976705489999999e-012) * Flt2Fluid.AltMN2pTh.y_Tamb)))))) else 518.2791167938085 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (3730042.76 + Flt2Fluid.AltMN2pTh.y_Tamb * (-13835.01485 + Flt2Fluid.AltMN2pTh.y_Tamb * (20.49107091 + Flt2Fluid.AltMN2pTh.y_Tamb * (-0.001961974759 + Flt2Fluid.AltMN2pTh.y_Tamb * (4.72731304e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (-3.72881469e-011 + 1.623737207e-015 * Flt2Fluid.AltMN2pTh.y_Tamb))))))) * Flt2Fluid.X_fluid_paramInput[1] + smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Tamb < 1000) then 296.8033869505308 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (22103.71497 + Flt2Fluid.AltMN2pTh.y_Tamb * (-381.846182 + Flt2Fluid.AltMN2pTh.y_Tamb * (6.08273836 + Flt2Fluid.AltMN2pTh.y_Tamb * (-0.00853091441 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.384646189e-005 + Flt2Fluid.AltMN2pTh.y_Tamb * (-9.62579362e-009 + 2.519705809e-012 * Flt2Fluid.AltMN2pTh.y_Tamb)))))) else 296.8033869505308 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (587712.406 + Flt2Fluid.AltMN2pTh.y_Tamb * (-2239.249073 + Flt2Fluid.AltMN2pTh.y_Tamb * (6.06694922 + Flt2Fluid.AltMN2pTh.y_Tamb * (-0.00061396855 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.491806679e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (-1.923105485e-011 + 1.061954386e-015 * Flt2Fluid.AltMN2pTh.y_Tamb))))))) * Flt2Fluid.X_fluid_paramInput[2] + smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Tamb < 1000) then 259.8369938872708 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (-34255.6342 + Flt2Fluid.AltMN2pTh.y_Tamb * (484.700097 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.119010961 + Flt2Fluid.AltMN2pTh.y_Tamb * (0.00429388924 + Flt2Fluid.AltMN2pTh.y_Tamb * (-6.83630052e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (-2.0233727e-009 + 1.039040018e-012 * Flt2Fluid.AltMN2pTh.y_Tamb)))))) else 259.8369938872708 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (-1037939.022 + Flt2Fluid.AltMN2pTh.y_Tamb * (2344.830282 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.819732036 + Flt2Fluid.AltMN2pTh.y_Tamb * (0.001267847582 + Flt2Fluid.AltMN2pTh.y_Tamb * (-2.188067988e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (2.053719572e-011 + (-8.193467050000001e-016) * Flt2Fluid.AltMN2pTh.y_Tamb))))))) * Flt2Fluid.X_fluid_paramInput[3]) / (smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Tamb < 1000) then 518.2791167938085 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (-176685.0998 + Flt2Fluid.AltMN2pTh.y_Tamb * (2786.18102 + Flt2Fluid.AltMN2pTh.y_Tamb * (-12.0257785 + Flt2Fluid.AltMN2pTh.y_Tamb * (0.0391761929 + Flt2Fluid.AltMN2pTh.y_Tamb * (-3.61905443e-005 + Flt2Fluid.AltMN2pTh.y_Tamb * (2.026853043e-008 + (-4.976705489999999e-012) * Flt2Fluid.AltMN2pTh.y_Tamb)))))) else 518.2791167938085 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (3730042.76 + Flt2Fluid.AltMN2pTh.y_Tamb * (-13835.01485 + Flt2Fluid.AltMN2pTh.y_Tamb * (20.49107091 + Flt2Fluid.AltMN2pTh.y_Tamb * (-0.001961974759 + Flt2Fluid.AltMN2pTh.y_Tamb * (4.72731304e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (-3.72881469e-011 + 1.623737207e-015 * Flt2Fluid.AltMN2pTh.y_Tamb))))))) * Flt2Fluid.X_fluid_paramInput[1] + smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Tamb < 1000) then 296.8033869505308 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (22103.71497 + Flt2Fluid.AltMN2pTh.y_Tamb * (-381.846182 + Flt2Fluid.AltMN2pTh.y_Tamb * (6.08273836 + Flt2Fluid.AltMN2pTh.y_Tamb * (-0.00853091441 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.384646189e-005 + Flt2Fluid.AltMN2pTh.y_Tamb * (-9.62579362e-009 + 2.519705809e-012 * Flt2Fluid.AltMN2pTh.y_Tamb)))))) else 296.8033869505308 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (587712.406 + Flt2Fluid.AltMN2pTh.y_Tamb * (-2239.249073 + Flt2Fluid.AltMN2pTh.y_Tamb * (6.06694922 + Flt2Fluid.AltMN2pTh.y_Tamb * (-0.00061396855 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.491806679e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (-1.923105485e-011 + 1.061954386e-015 * Flt2Fluid.AltMN2pTh.y_Tamb))))))) * Flt2Fluid.X_fluid_paramInput[2] + smooth(0, if noEvent(Flt2Fluid.AltMN2pTh.y_Tamb < 1000) then 259.8369938872708 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (-34255.6342 + Flt2Fluid.AltMN2pTh.y_Tamb * (484.700097 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.119010961 + Flt2Fluid.AltMN2pTh.y_Tamb * (0.00429388924 + Flt2Fluid.AltMN2pTh.y_Tamb * (-6.83630052e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (-2.0233727e-009 + 1.039040018e-012 * Flt2Fluid.AltMN2pTh.y_Tamb)))))) else 259.8369938872708 * Flt2Fluid.AltMN2pTh.y_Tamb ^ (-2.0) * (-1037939.022 + Flt2Fluid.AltMN2pTh.y_Tamb * (2344.830282 + Flt2Fluid.AltMN2pTh.y_Tamb * (1.819732036 + Flt2Fluid.AltMN2pTh.y_Tamb * (0.001267847582 + Flt2Fluid.AltMN2pTh.y_Tamb * (-2.188067988e-007 + Flt2Fluid.AltMN2pTh.y_Tamb * (2.053719572e-011 + (-8.193467050000001e-016) * Flt2Fluid.AltMN2pTh.y_Tamb))))))) * Flt2Fluid.X_fluid_paramInput[3] + (-518.2791167938085) * Flt2Fluid.X_fluid_paramInput[1] + (-296.8033869505308) * Flt2Fluid.X_fluid_paramInput[2] + (-259.8369938872708) * Flt2Fluid.X_fluid_paramInput[3]))); 882: Flt2Fluid.AltMN2pTh.y_hTot = PropulsionSystem.Subelements.AltMN2pTh00$Flt2Fluid$AltMN2pTh.Medium.isentropicEnthalpyApproximation(Flt2Fluid.AltMN2pTh.y_pTot, PropulsionSystem.Subelements.AltMN2pTh00$Flt2Fluid$AltMN2pTh.Medium.ThermodynamicState$Flt2Fluid$AltMN2pTh$fluidAmb$state(Flt2Fluid.AltMN2pTh.y_pAmb, Flt2Fluid.AltMN2pTh.y_Tamb, {Flt2Fluid.X_fluid_paramInput[1], Flt2Fluid.X_fluid_paramInput[2], Flt2Fluid.X_fluid_paramInput[3]})); 883: Flt2Fluid.AltMN2pTh.y_hTot = Flt2Fluid.AltMN2pTh.y_hAmb + 0.5 * Flt2Fluid.y_V_inf ^ 2.0; 929: Flt2Fluid.AltMN2pTh.fluidAmb.R = 518.2791167938085 * Flt2Fluid.X_fluid_paramInput[1] + 296.8033869505308 * Flt2Fluid.X_fluid_paramInput[2] + 259.8369938872708 * Flt2Fluid.X_fluid_paramInput[3]; 930: Flt2Fluid.AltMN2pTh.fluidAmbStd.R = 518.2791167938085 * Flt2Fluid.X_fluid_paramInput[1] + 296.8033869505308 * Flt2Fluid.X_fluid_paramInput[2] + 259.8369938872708 * Flt2Fluid.X_fluid_paramInput[3]; 892: Flt2Fluid.AltMN2pTh.y_hAmb = PropulsionSystem.Subelements.AltMN2pTh00$Flt2Fluid$AltMN2pTh.Medium.h_TX(Flt2Fluid.AltMN2pTh.y_Tamb, {Flt2Fluid.X_fluid_paramInput[1], Flt2Fluid.X_fluid_paramInput[2], Flt2Fluid.X_fluid_paramInput[3]}, true, Modelica.Media.Interfaces.Choices.ReferenceEnthalpy.ZeroAt0K, 0.0); 881: algorithm if Flt2Fluid.environment.alt_ground <= Flt2Fluid.alt_paramInput and Flt2Fluid.alt_paramInput < Flt2Fluid.environment.alt_UpBdTropos then Flt2Fluid.AltMN2pTh.TambStd := max(Flt2Fluid.environment.T_ground + (-0.0064878) * (Flt2Fluid.alt_paramInput - Flt2Fluid.environment.alt_ground), 1e-010); Flt2Fluid.AltMN2pTh.y_Tamb := max(Flt2Fluid.AltMN2pTh.TambStd + Flt2Fluid.dTamb_paramInput, 1e-010); Flt2Fluid.AltMN2pTh.pAmbStd := max(Flt2Fluid.environment.p_ground * (Flt2Fluid.AltMN2pTh.TambStd / Flt2Fluid.environment.T_ground) ^ ((-Flt2Fluid.environment.gravity) / (Flt2Fluid.AltMN2pTh.fluidAmbStd.R * Flt2Fluid.environment.LapseR1)), 1e-010); Flt2Fluid.AltMN2pTh.y_pAmb := max(Flt2Fluid.environment.p_ground * (Flt2Fluid.AltMN2pTh.y_Tamb / Flt2Fluid.environment.T_ground) ^ ((-Flt2Fluid.environment.gravity) / (Flt2Fluid.AltMN2pTh.fluidAmb.R * Flt2Fluid.environment.LapseR1)), 1e-010); elseif Flt2Fluid.environment.alt_UpBdTropos <= Flt2Fluid.alt_paramInput and Flt2Fluid.alt_paramInput < Flt2Fluid.environment.alt_UpBdStratos then Flt2Fluid.AltMN2pTh.TambStd := max(Flt2Fluid.environment.T_UpBdTropos, 1e-010); Flt2Fluid.AltMN2pTh.y_Tamb := max(Flt2Fluid.AltMN2pTh.TambStd + Flt2Fluid.dTamb_paramInput, 1e-010); Flt2Fluid.AltMN2pTh.pAmbStd := max(Flt2Fluid.environment.p_UpBdTropos * exp(Flt2Fluid.environment.gravity * (Flt2Fluid.environment.T_UpBdTropos - Flt2Fluid.alt_paramInput) / (Flt2Fluid.AltMN2pTh.fluidAmbStd.R * Flt2Fluid.AltMN2pTh.TambStd)), 1e-010); Flt2Fluid.AltMN2pTh.y_pAmb := max(Flt2Fluid.environment.p_UpBdTropos * exp(Flt2Fluid.environment.gravity * (Flt2Fluid.environment.T_UpBdTropos - Flt2Fluid.alt_paramInput) / (Flt2Fluid.AltMN2pTh.fluidAmb.R * Flt2Fluid.AltMN2pTh.y_Tamb)), 1e-010); end if; ; for variables $PRE.Trb.fluid_1_des.p(589), Cmp1.flagEffVal(350), Trb.port_2.Xi_outflow[1](595), Trb.fluid_1_des.m_flow(590), Trb.fluid_1.T(616), Trb.fluid_1.d(617), $PRE.Trb.fluid_2_des.s(561), $PRE.Trb1.PRdes(201), $PRE.Nzl.fluid_1_des.X[1](411), Trb1.pwr(223), Comb.HeatInjector.fluid_1.u(834), Cmp1.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_Wc.tableOnFileRead(11), Flt2Fluid.AltMN2pTh.fluidAmbStd.T_degC(908), Trb.fluid_1.u(615), Cmp1.CmpTbl_WcPReff_NcRline.combiTable2D_Wc.tableOnFileRead(8), Flt2Fluid.AltMN2pTh.fluidTot.p_bar(916), Trb.fluid_1.h(618), Trb1.m_flow_max(209), Inlt.y_FdRam(922), Trb.Nc_1_des(627), Cmp1.CmpTbl_WcPReff_NcRline.combiTable2D_PR.tableOnFileRead(7), $PRE.Cmp1.flange_1_des.pwr(286), Trb1.fluid_1.Xi[3](194), Flt2Fluid.sourceFluidAmb.medium.d(900), Comb.Mixer.fluid_3.Xi[3](864), Comb.Mixer.fluid_3.R(859), SpltDesPt.Splt.fluid_3.Xi[1](57), Flt2Fluid.AltMN2pTh.y_pAmb(906), Flt2Fluid.sourceFluid2Inlet.medium.d(895), Flt2Fluid.sourceFluidAmb.medium.T_degC(898), $PRE.Trb.Nc_1_des(628), Trb1.ScalerDesTrb.division3.u1(92), Cmp.Nmech(795), Comb.Mixer.fluid_1afterMix.T(854), Comb.Mixer.fluid_3.p_bar(856), Comb.Mixer.fluid_1afterMix.d(855), Comb.Mixer.fluid_3.MM(858), Comb.Mixer.fluid_3.T_degC(857), Comb.HeatInjector.fluid_1.MM(832), Nzl.AeThDes(386), Inlt.fluid_2.d(927), Cmp.fluid_2_des.m_flow(726), Cmp.s_fluid_1(785), Trb.fluid_1.Xi[2](620), $PRE.Trb1.variablesDes.Nmech(108), Inlt.fluid_2.Xi[1](26), Inlt.fluid_2.T_degC(924), Inlt.fluid_2.Xi[2](27), Cmp1.SclCmp.y_PRscld(232), Inlt.fluid_2.p_bar(923), Trb.fluid_2.h(606), Flt2Fluid.AltMN2pTh.fluidTot.R(29), Nzl.fluidStat_th_choked.T_degC(425), Cmp.port_2.h_outflow(748), Cmp1.CmpTbl_WcPReff_NcRline.u_NcTbl(230), Inlt.fluid_1.MM(44), Trb1.Wc_1(216), $DER.Trb1.phi(218), $PRE.Cmp.fluid_2_des.p(725), Trb1.Nc_1(215), Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_Wc.tableOnFileRead(21), Cmp.CmpTbl_WcPReff_NcRline.combiTable2D_PR.tableOnFileRead(17), Nzl.fluidStat_th_choked.d(430), Cmp1.SclCmp.y_WcScld(233), Cmp.flange_1.tau(25), Cmp1.CmpTbl_WcPReff_NcRline.y_Wc(229), Cmp1.CmpTbl_WcPReff_NcRline.y_PR(228), Flt2Fluid.AltMN2pTh.fluidAmb.R(30), Cmp1.ScalerDesCmp.y_s_effDes(236), boundary.medium.u(39), Cmp1.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_eff(241), Cmp1.ScalerDesCmp.division3.u1(37), Nzl.fluidStat_th_fullExp.T_degC(433), Nzl.fluidStat_th.R(451), Trb1.flange_2.tau(22), SpltDesPt.Splt.fluid_2.p_bar(58), Trb1.fluid_1.Xi[2](195), Cmp1.flange_1_des.omega(283), Cmp1.flange_1_des.pwr(285), Cmp1.fluid_2_des.X[2](291), Cmp.fluid_2.p(762), SpltDesPt.division1.u2(45), Trb.flange_2.tau(24), Cmp1.flange_1.tau(23), Comb.Mixer.fluid_2.h(40), Nzl.fluidStat_th_fullExp.MM(434), Nzl.fluidStat_th_fullExp.T(437), Cmp.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_PR.tableOnFileRead(20), Nzl.fluidStat_th.T_degC(449), Cmp1.SclCmp.feedback1.y(235), Cmp1.ScalerDesCmp.y_s_PRdes(237), Trb1.pwr_inv(221), Nzl.fluidStat_th_fullExp.R(435), Comb.port_2.h_outflow(806), Trb1.s_fluid_1(225), Trb1.omega(219), Comb.fluid_1.p_bar(814), Comb.HeatInjector.fluid_2.T_degC(823), Cmp.h_2is(788), Comb.fluid_2.T(812), Comb.HeatInjector.fluid_2.MM(824), Cmp.dht(789), Comb.port_2.Xi_outflow[3](803), Comb.port_2.Xi_outflow[2](804), Flt2Fluid.AltMN2pTh.fluidAmbStd.h(911), Flt2Fluid.AltMN2pTh.fluidTot.T_degC(917), Trb1.dht_is(212), Cmp1.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_PR.tableOnFileRead(10), Cmp1.SclCmp.add1.u1(234), Cmp.flange_2.tau(744), Trb1.s_fluid_2(224), Trb1.m_flow_min(208), $PRE.Cmp.NmechDes(781), Cmp.m_flow_max(787), Comb.HeatInjector.fluid_2.p_bar(822), $PRE.Trb1.fluid_1_des.p(164), Comb.fluid_1.d(820), Comb.fluid_2.d(813), Comb.fluid_2.u(811), Nzl.fluid_1_des.X[1](410), Comb.HeatInjector.fluid_1.d(836), Cmp.fluid_1.R(766), Cmp.fluid_1.d(769), Trb.TrbTbl_WcEff_NcPR.combiTable2D_Wc.tableOnFileRead(13), Cmp1.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.combiTable2D_eff.tableOnFileRead(9), Trb1.h_2is(210), Cmp1.ScalerDesCmp.CmpTbl_WcPReff_NcRline_Des.y_Wc(243), $PRE.Cmp1.fluid_1_des.s(304), Trb1.ScalerDesTrb.TrbTbl_WcEff_NcPR.y_Wc(94), Cmp1.fluid_1_des.s(303), Cmp1.variablesDes.h_2is(245), Trb.TrbTbl_WcEff_NcPR.combiTable2D_eff.tableOnFileRead(12), $PRE.Cmp1.variablesDes.h_2is(246), Trb1.dht(211), $PRE.Nzl.fluid_1_des.X[2](409), $PRE.Trb1.Wc_1_des(207), Cmp.fluid_1.T_degC(764), Nzl.fluidStat_th_choked.MM(426), Cmp.fluid_1.p_bar(763), Cmp.fluid_1.T(768), Cmp.fluid_1.u(767), Comb.HeatInjector.fluid_1.T(835), Comb.HeatInjector.fluid_1.h(837), Cmp.fluid_1_des.X[2](732), $PRE.Nzl.fluid_1_des.h(413), Comb.HeatInjector.fluid_2.d(828), Cmp.fluid_1.MM(765), Cmp1.variablesDes.dht_is(247), Trb.fluid_1.Xi[3](619), Cmp.fluid_1_des.p(740), $PRE.Cmp.fluid_2_des.m_flow(727), Trb1.Nc_1_des(202), Flt2Fluid.AltMN2pTh.y_hTot(901), Comb.Mixer.fluid_3.Xi[2](865), Comb.Mixer.m_flow_min(879), Flt2Fluid.AltMN2pTh.fluidAmb.p_bar(912), Comb.Mixer.fluid_1.d(878), Flt2Fluid.AltMN2pTh.fluidAmb.T_degC(913), Flt2Fluid.AltMN2pTh.fluidAmb.u(914), Comb.Combustion.y_Qcomb(881), Flt2Fluid.sourceFluid2Inlet.medium.p_bar(892), Comb.Mixer.fluid_1.MM(874), Comb.Mixer.fluid_1.p_bar(872), Comb.Mixer.fluid_3.Xi[1](866), Comb.Combustion.m_flow_fuel(886)

[8] 14:44:18 Translation Error No system for the symbolic initialization was generated

------------------------------------------------------------
